Structure and function of 25kg large package sterilization Machine

Structure and function of 25kg large package sterilization Machine

  • Categories:FAQ
  • Author:
  • Origin:
  • Time of issue:2022-07-20
  • Views:0

(Summary description)The 25kg large package sterilization Machine is mainly used to kill microorganisms on products, packaging containers and packaging materials, packaging aids and packages, etc., and reduce them to the allowable range.

Structure and function of 25kg large package sterilization Machine

(Summary description)The 25kg large package sterilization Machine is mainly used to kill microorganisms on products, packaging containers and packaging materials, packaging aids and packages, etc., and reduce them to the allowable range.

  • Categories:FAQ
  • Author:
  • Origin:
  • Time of issue:2022-07-20
  • Views:0
Information

The 25kg large package sterilization Machine is mainly used to kill microorganisms on products, packaging containers and packaging materials, packaging aids and packages, etc., and reduce them to the allowable range. 25kg large package sterilization Machine is widely used in dairy and pharmaceutical industries. It can be customized according to customer's site size. The equipment is divided into two types: low and high. It can automatically detect the sterilization intensity. It is the first choice for sterilization from general areas to purification areas.

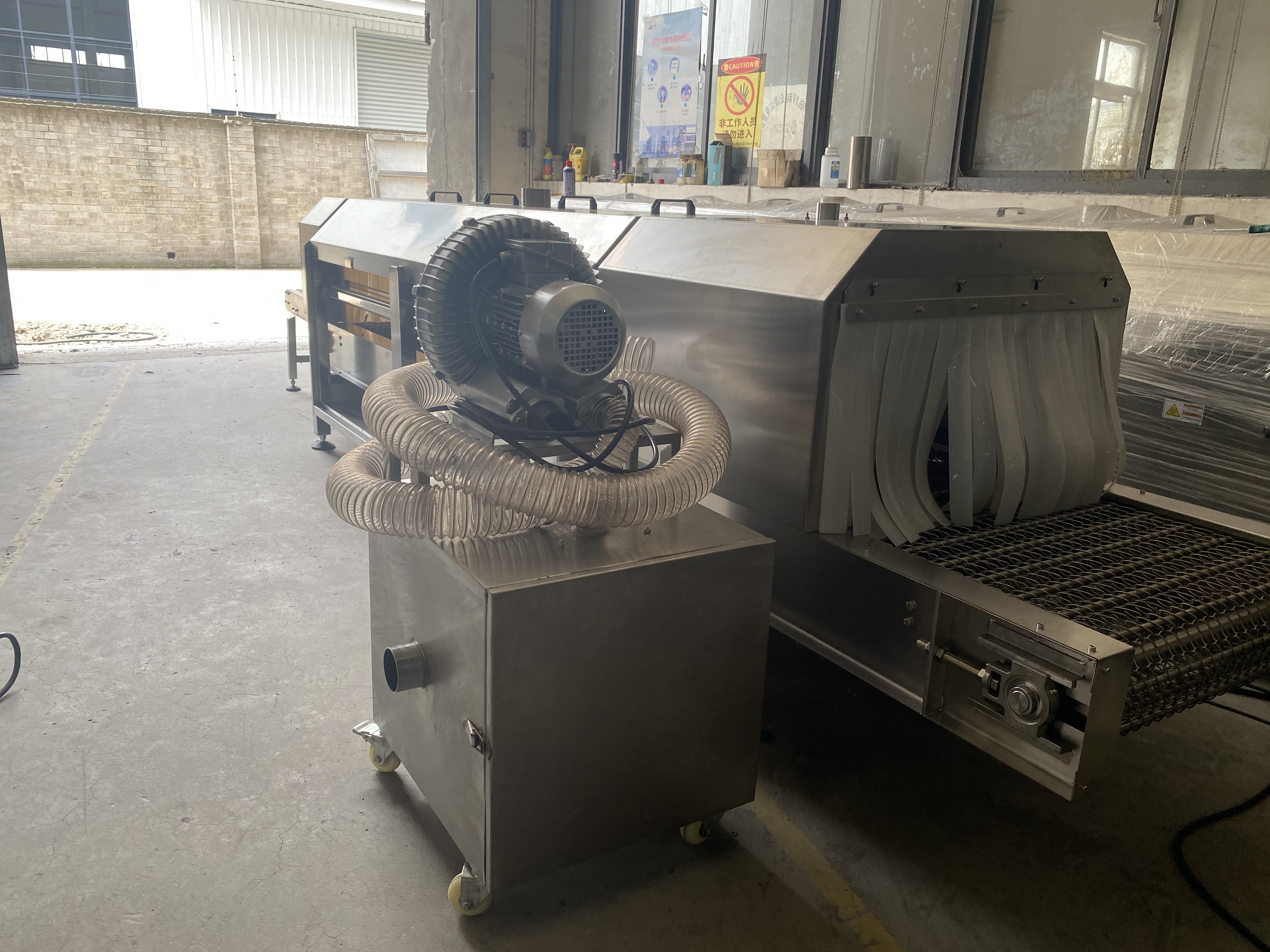

 25kg large package sterilization Machine
Structure and function of 25kg large package sterilization Machine

1.Sterilization chamber: The sterilization chamber of the 25kg large package sterilization Machine is made of all 304 stainless steel. After the door is pulled up and taken away, the interior of the sterilization chamber will be clear at a glance, avoiding the dead corners of hygiene. The bottom edge is the powder collecting tank, which is formed by bending a whole plate, and the middle part is a long prism, so that the material and dust can slide along the side of the long prism to the periphery of the powder collecting tank. The two ends of the sterilization chamber are light-blocking curtains, which can be easily removed. There is a vacuum port one day behind the upper middle of the sterilization chamber, which can be connected to the vacuum system.

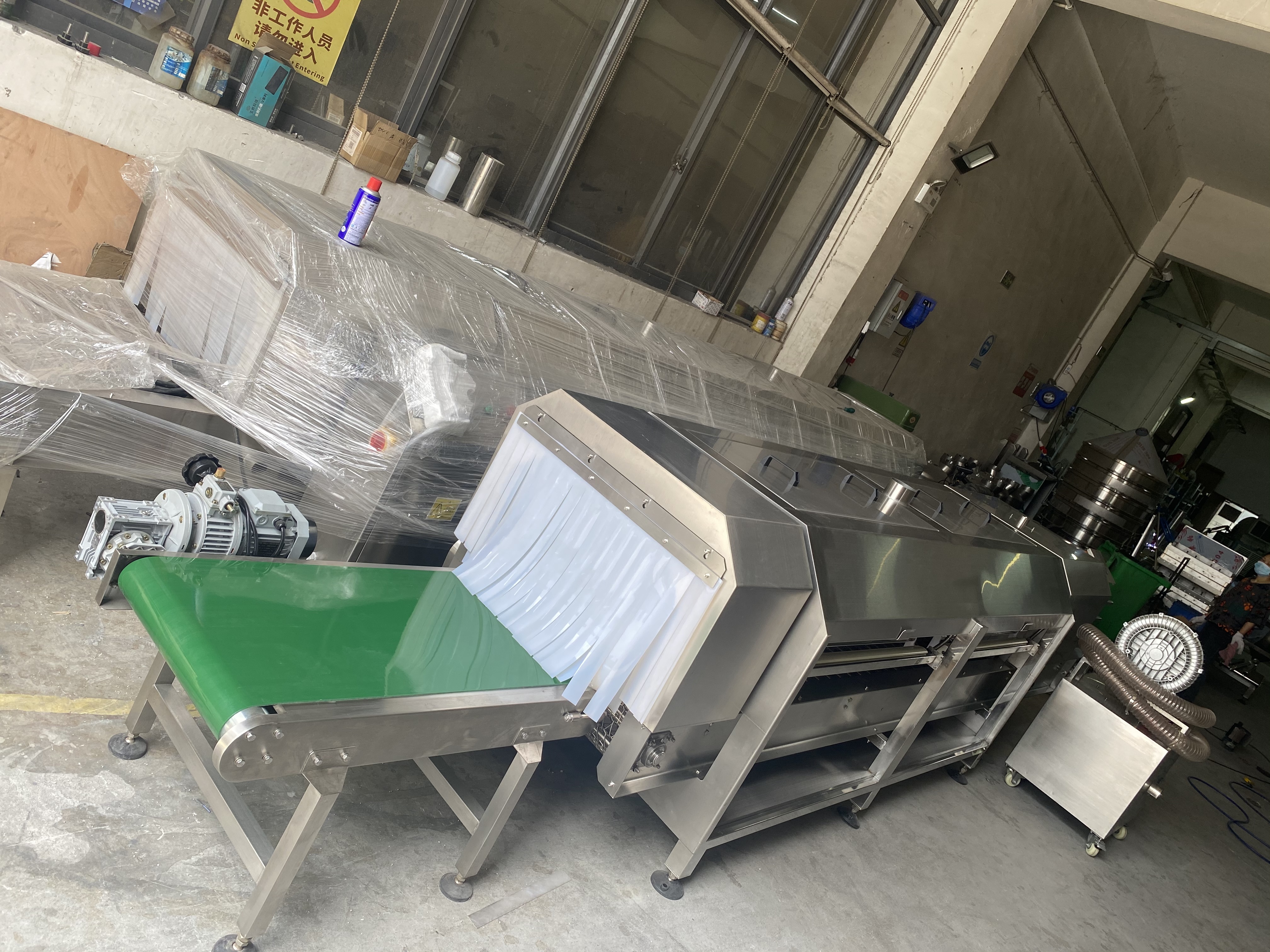

  25kg large package sterilization Machine
2.Roller conveyor: Rollers with sprockets at one end are evenly distributed between the rails on both sides of the roller conveyor that crosses the sterilization chamber, and are interlocked through chains, and finally connected to the geared motor, the sprockets and bearings are closed. inside the side rails. Each roller is a power unit, and several rollers push the packaging bag forward at the same time. The ultraviolet rays are irradiated to the bottom of the packaging bag through the gap between the rollers. The side rails on both sides of the conveyor are also used as the main wire trough. There are several quick joint seats distributed on the bottom edge of the side rails, and the control circuit is distributed through this quick joint seat. In order not to hinder the cleaning work in the sterilization chamber, the 25kg large package sterilization Machine places the geared motor outside the sterilization chamber. In order to prevent the side lights in the sterilization chamber from being damaged when the packaging bags are pulled to the side, small guardrails are installed on the side rails on both sides of the conveyor.

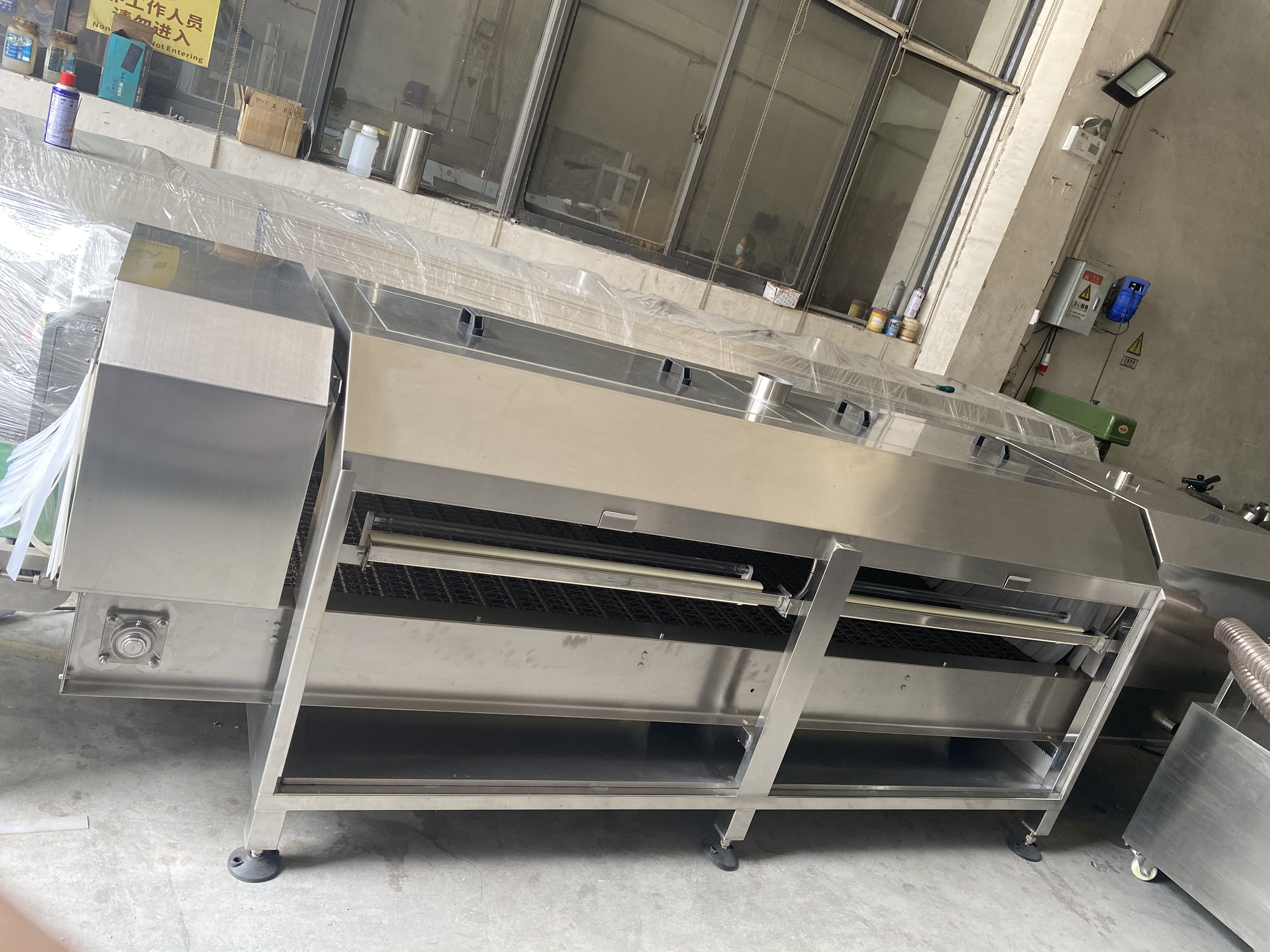

  25kg large package sterilization Machine
3. Germicidal lamp group module: There are a total of 8 groups of lamps distributed around the conveyor in the sterilization chamber. Each group of lamps is an independent unit module and can be easily moved as needed. or take away, thus making cleaning or maintenance easier. A lead wire is installed on the module, and the end of the lead wire is equipped with a quick connector. When the 25kg large package sterilization Machine is used, the quick connector can be inserted into the corresponding quick connector seat on the bottom edge of the side rail. The special germicidal lamp holder is adopted, which has the characteristics of high temperature resistance, oxidation resistance and long service life.
Dingjiang Packaging Machinery, Design Reliable Packaging Solutions For You With 20 Years Experience !
