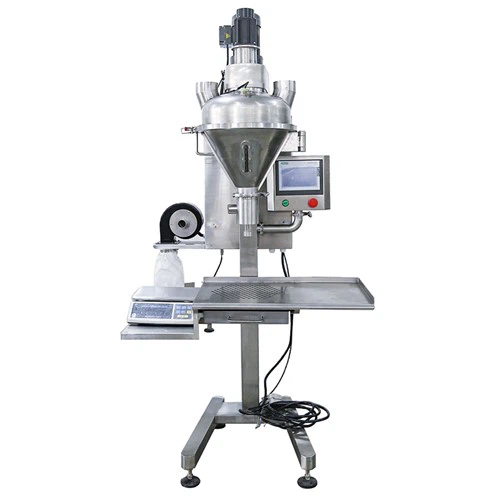

Double Auger Powder Filling Machine

Our DJ-1C1 double auger powder filling machine is a high-precision semi-automatic model, ideal for packaging fine powder materials like milk powder, protein powder, and spice powder. This machine is designed to efficiently handle a wide variety of powder-based products, including flour, milk powder, protein powder, and more. With the ability to fill bags or barrels with packaging weights ranging from 10kg to 50kg, the 25kg milk powder packing machine is perfect for industries that require bulk powder packaging with high precision and speed.

Send Inquiry
  • Description

    Scope of application of the machine



    Double auger powder filling machine can be widely used for filling various powder materials, including: Milk powder, flour, Rice noodles, protein powder, seasoning powder, chemical powder, coffee powder, bean powder, etc.

    Many food factories use our DJ-1C1 to pack 25kg wheat flour-accuracy up to ±0.2%

    wheat flour
    wheat flour
    corn starch
    corn starch
    protein powder
    protein powder
    Sesame powder
    Sesame powder
    meal replacement powder
    meal replacement powder
    red bean powder
    red bean powder
    Small Rice noodles
    Small Rice noodles
    Walnut powder
    Walnut powder

    * If you are unsure if your powder material is suitable for this device, you can leave your contact information and we will contact you as soon as possible to answer your questions

    Technological Parameters

    Model DJ-1C1
    Metering Mode Net weighing mode
    Feeding Mode Double screw
    Package Weight 10-50Kg (according to material)
    Package Accuracy ±0.2% (according to material proportion and pack weight)
    Packaging Speed ≤3bags/min (according to material and filling weight)
    Power Supply 380 220V/50Hz
    Atmospheric Pressure and Use Tolerance 6-8Kg/cm2 0.2m3/min
    Total Power 3.9kW(Power for air supply not include)
    Overall Dimensions 1000mm*1200mm*2400mm



    Product Features

    200L Round Hopper, easy to clean, add cover to prevent dust, keep room clean.
    200L Round Hopper, easy to clean, add cover to prevent dust, keep room clean.
    Stainless steel sprayed yellow to warn operators to pay attention.
    Stainless steel sprayed yellow to warn operators to pay attention.
    Shut-off valve under the screw to prevent leakage and ensure accuracy.
    Shut-off valve under the screw to prevent leakage and ensure accuracy.
    DJ-1C1 double auger powder filling machine - anti-pinch device detail
    Anti-pinch device ensure the safety of employees, no hurt even been clamp.
    Stainless steel sprayed yellow to warn operators to pay attention.
    Stainless steel sprayed yellow to warn operators to pay attention.
    Shut-off valve under the screw to prevent leakage and ensure accuracy.
    Shut-off valve under the screw to prevent leakage and ensure accuracy.
    320° rotating electric box, multi-angle operation, Siemens touch screen.
    320° rotating electric box, multi-angle operation, Siemens touch screen.
    Schneider Electric, big brand,Steady and Easy to get when it is urgent.
    Schneider Electric, big brand,Steady and Easy to get when it is urgent.



    This DJ-1C1 double auger powder filling machine adopts dual auger design, which solves the problem of powder bridging and ensures 99% filling accuracy-meets FDA and CE standards for food and pharmaceutical industries.





    Machine Detail

    1. Double Auger System for Precision

    The 25kg powder filling machine production line features a unique double auger design, with both a large and small screw to ensure the accuracy and efficiency of the filling process. This system guarantees uniform powder distribution, improving both the filling speed and precision for every package.

    2. High Accuracy and Speed

    With a packaging accuracy of ±0.2%, this machine is engineered to provide excellent precision even with varying material types and package sizes. The machine's speed of up to 3 bags per minute ensures high productivity for medium to large-scale packaging operations.

    3. Net Weighing Mode

    The 25kg powder packing machine with clamp uses a net weighing mode to measure and fill the powders into bags or barrels. This method enhances accuracy and minimizes material waste, ensuring that each package meets the specified weight requirements.

    4. Versatile Packaging Range (10-50kg)

    Capable of packaging a wide range of weights, from 10kg to 50kg, the kraft paper bag packing machine can easily handle a variety of powders and materials. The machine is adjustable, allowing for easy adaptation to different product types and packaging weights by simply changing the auger configuration.

    5. User-Friendly Touchscreen Interface

    Equipped with a 5.7-inch touchscreen, the 25kg coffee powder packing machine allows for simple operation with a choice of Chinese or English interface, and custom language options are available. The easy-to-navigate control system ensures smooth operation, minimizing downtime and operator errors.

    6. Durable and Easy to Maintain

    Constructed with a well-thought-out mechanical design, this machine is easy to maintain and clean. The machine's modular parts can be quickly changed for different product types and packaging sizes, making it flexible and easy to maintain for long-term use.

    Regular cleaning is essential to maintain machine accuracy. For a complete step-by-step guide, please refer to our article on [How to Clean Your Powder Filling Machine]

    7. Customizable for Various Powder Products

    By swapping out accessories, this machine is highly adaptable, capable of packaging a wide variety of powder products. Whether you are filling food powders, industrial powders, or chemicals, the 25kg rice powder packing machine can handle your needs with ease.

    8. Quiet Operation

    Unlike many other machines in the market, the 25kg flour filling machine operates quietly, minimizing noise pollution in your production facility. The design ensures smooth operation without the loud, disruptive sounds common with similar machines.

    9. Premium Electrical Components

    For added reliability, the 25kg powder bag packing and sewing machine uses famous brand electrical components, ensuring steady and long-lasting performance even under heavy workloads.

    10. Optimized for Bulk Powder Filling

    The machine is built for high-efficiency bulk filling, ensuring that powders are consistently packed without loss or waste. Its unique double auger system enhances the filling process, making it ideal for large packaging needs.



    Equipment Structure Diagram

    Equipment-Structure-Diagram
    Equipment Structure Diagram



    Products Actual Photos

    DJ-1C1 double auger powder filling machine + sealing machine - actual photo for 10-50kg bulk packaging
    DJ-1C1+S1+Sealing machine+bag sewing machine
    DJ-1C1 powder packing machine+S1+Sealing machine+bag sewing machine
    DJ-1C1+S1+Sealing machine+bag sewing machine
    DJ-1C1 powder packing machine+S1
    DJ-1C1+S1
    DJ-1C1 powder packing machine+S1
    DJ-1C1+S1



    FAQ



    Can your machine meet our needs well?

    +

    -

    Just send us your product video and pack weight, then we can choose suitable machine for you.

    Are you factory or trading company?

    +

    -

    We are 17 years factory focus on powder grain pack machine.

    How can we make sure about the machine quality after we start the order?

    +

    -

    Before delivery, we do FAT and send you the pictures and videos for you to check the quality, Also we prepare you manual, video, all details photos.

    What is your terms of packing?

    +

    -

    Pack in wooden cartons.

    What is your terms of payment?

    +

    -

    T/T 40% as deposit, and 60% before delivery. For big order, we accept L/C at sight.

    How about your delivery time?

    +

    -

    15 to 45 days after receiving your advance payment. Details depend on your pack machine.



    Video





    You can also click here to view more videos about DJ-1C1



    Want to customize the DJ-1C1 double auger powder filling machine? Send us your material type and daily output, get a free quote within 2 hours.
