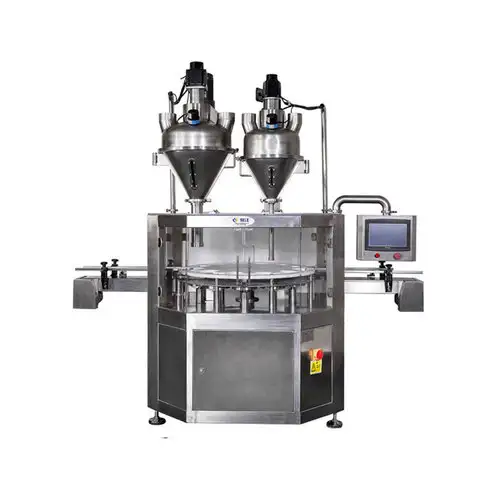

Products name: DJ-2B3 Automatic Double Auger Powder Can Filling Machine
Usage
This machine is automatic powder double head filling machine: suitable for 10-3000g, different type powder, filling in plastic glass metal bottle, Jar or barrel, speed 20-55cans per min.
Technological Parameters
|
Model |
DJ-2B3 |
|
Metering Mode |
Double Auger filling, weighing feedback proportion tracked |
|
Package Weight |
10-5000g (by changing the auger attachment) |
|
Package Accuracy |
≤±1.5g(according to material ) |
|
Packing Speed |
20-55times/min |
|
Power Supply |
380V/220V 50Hz/60Hz |
|
Hopper Volume |
50L+25L |
|
Total Power |
3.5kW |
|
Total Weight |
700kg |
|
Overall Dimensions |
2400x1200x2300mm |
|
Interface |
PLC control system, 5.7 inch touch screen |
|
Container Size |
Diameter 50-180mm; Height 50-350mm |

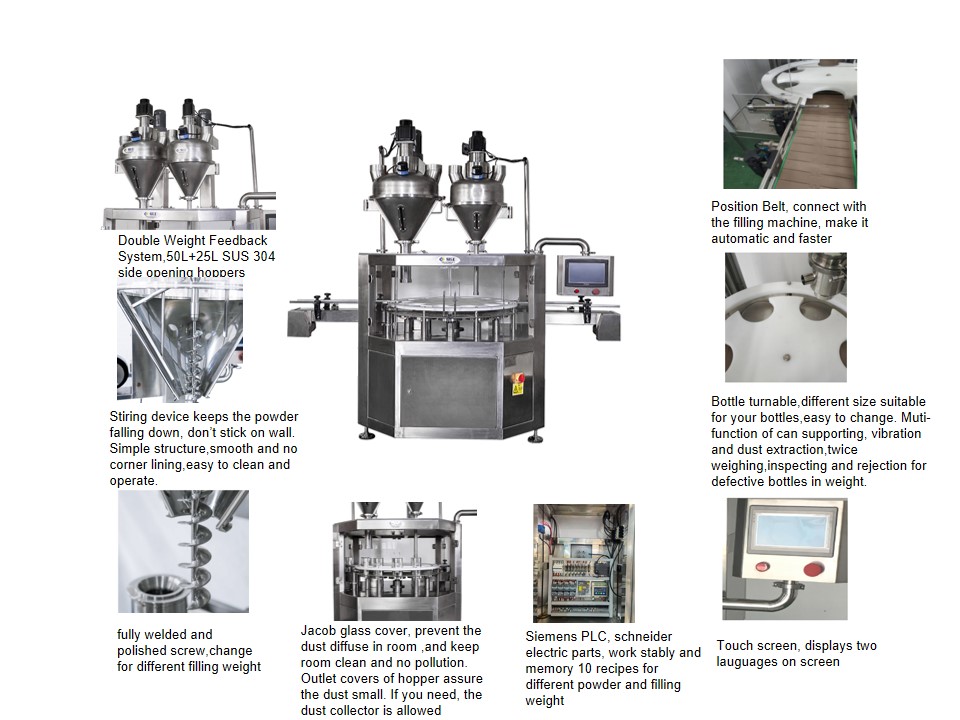

Feature
1. 50L +25L Double stainless steel side opening Hopper, easy to clean.
2. Packaging powdery in 10-5000g bottle.
3. Double Teco Servo motor drive the auger, got high accuracy.
4. Have one stir on the hopper, assure the powder fill in the auger.
5. Chinese/English or custom your language in the Siemens touch screen.
6. Reasonable mechanical structure, easy to change size parts and clean up.
7. Through changing accessories, the machine is suitable for various powder products.
8. We use famous brand electric, more steady.
9. We match one vacuum cleaner, collect dust and easy to clean the machine.
10. With Supporting can system, reduce dust.
11. With Twice check weight after filling, got high accuracy.
