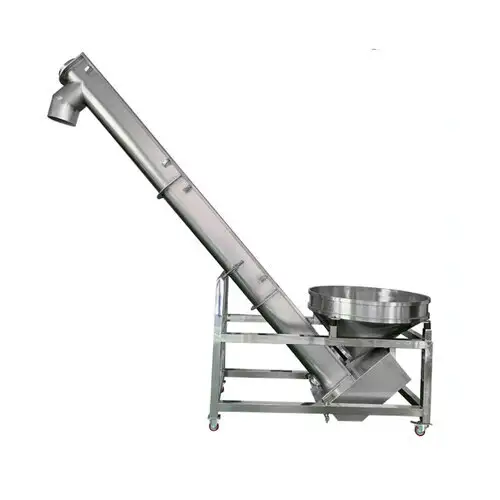

Products name: DJ-S5 U-shape Inclined Screw Conveyor
2.Charging angle:Standard 45 degree,30~60 degree are also available.
3.Charging height:Standard 1.85M,1~5M could be designed and manufactured.
4.Charging capacity:Other charging capacity could be designed and manufactured.
5.The feeding system can be customized with no hopper,just connecting directly to other machines.
6.U shape trough,there is stainless steel cap on the trough hinged by buckle with good sealing in the middle,Easy to remove and clean.
7.Fully stainless steel,contact parts made of SS304.
Products info
Parameters
Usage
DJ-S5 Auger screw conveyor, the machine can hoist a variety of powder materials, can be match with packing machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet.
Technological Parameters
|
Model |
DJ-S5-1 |
DJ-S5-2 |
DJ-S5-3 |
DJ-S5-4 |
DJ-S5-5 |
DJ-S5-6 |
|
Conveying Capacity |
2m³/h |
3m³/h |
5m³/h |
7m³/h |
8m³/h |
12m³/h |
|
Diameter of pipe |
Φ102 |
Φ114 |
Φ141 |
Φ159 |
Φ168 |
Φ219 |
|
Total Power |
0.58kW |
0.78kW |
1.53kW |
1.53kW |
3.03kW |
4.03kW |
|
Total Weight |
100kg |
130kg |
170kg |
200kg |
220kg |
270kg |
|
Hopper volume |
100L |
200L |
200L |
200L |
200L |
200L |
Feature
1. Power supply: 3P AC208-415V 50/60Hz 2. Charging angle: Standard 45 degree, 30~60 degree are also available. 3. Charging height: Standard 1.85M, 1~5M could be designed and manufactured. 4. Charging capacity: Other charging capacity could be designed and manufactured. 5. The feeding system can be customized with no hopper,just connecting directly to other machines. 6. U shape trough, there is stainless steel cap on the trough hinged by buckle with good sealing in the middle, Easy to remove and clean. 7. Fully stainless steel,contact parts made of SS304.
