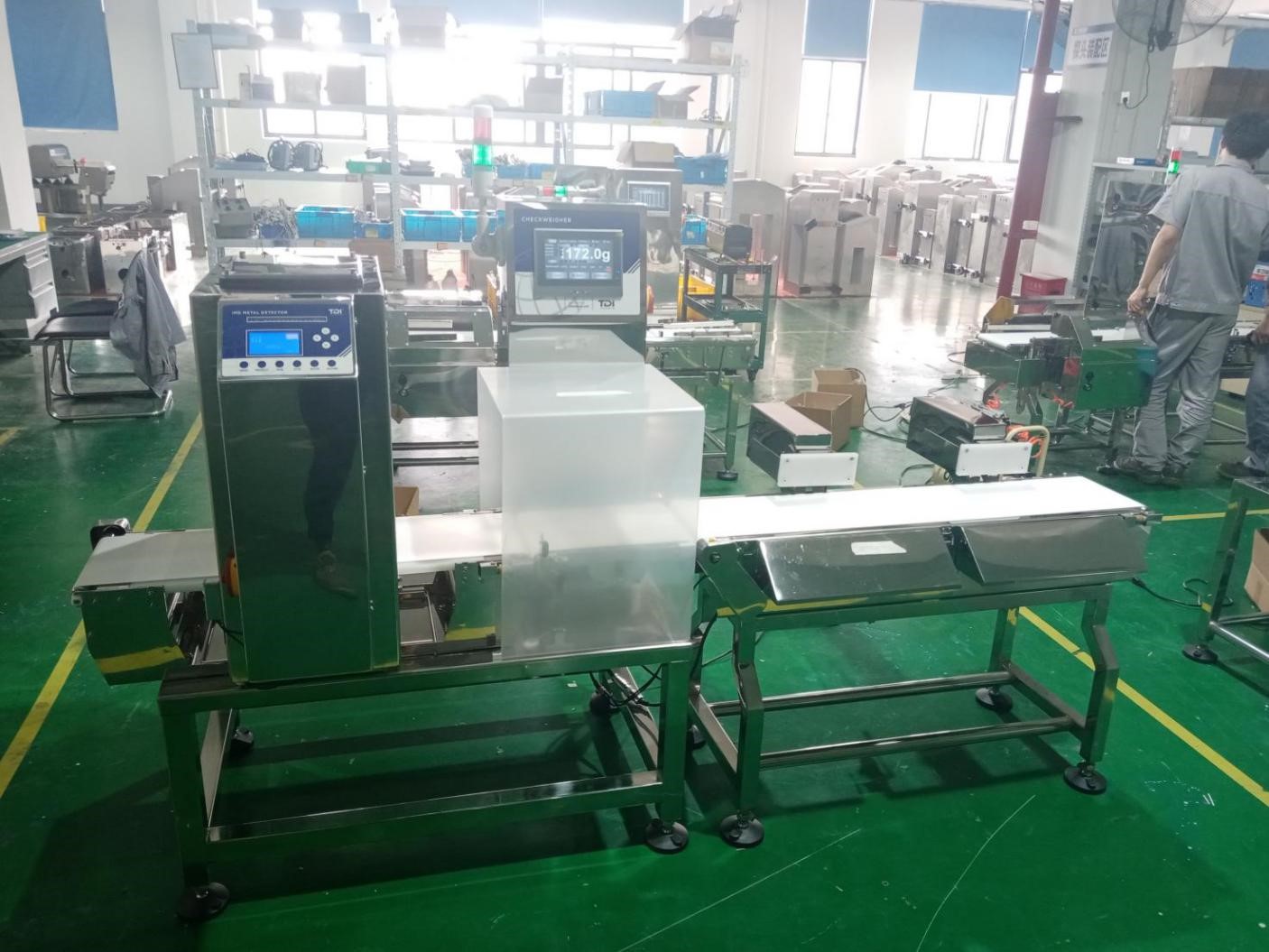

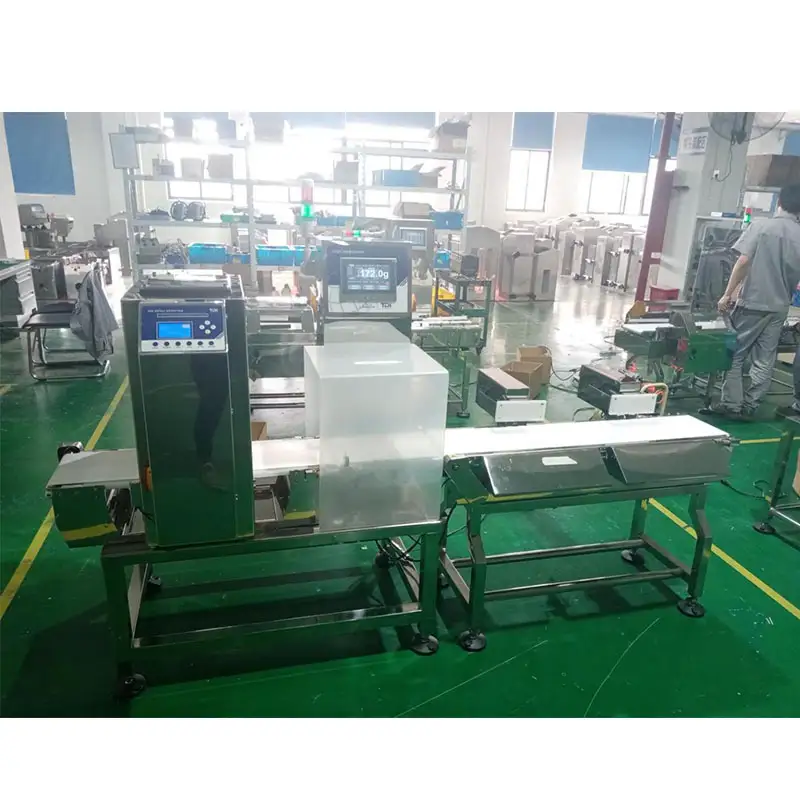

Dingjiang - Customized Check Weigher and Metal Detector Machine for Food Industry Check weigher and metal detector

Always insist on taking the technology as the first productivity to improve our R&D strength, Shanghai Dingjiang Packaging Machinery Manufacturing Co., Ltd. has successfully developed Customized Check Weigher and Metal Detector Machine for Food Industry. Technological innovation is the cornerstone of product quality. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.

Customized Check Weigher and Metal Detector Machine for Food Industry

Products Description

Product Paramenters

Model	DJ-230S-H9
Weighing range	20~2000g
Division value	0.1g
The highest sorting accuracy (3σ)	±0.2g
Maximum sorting speed note	20-100times/min
Conveyor speed	70m/min
Product size	220mm
		200mm
Weighing platform size	230mm
		350mm
Remarks	3Section (drainage section, weighing section, rejection section)
Effective height of metal detection probe	＞200mm
Operation instructions	7 inch touch LCD screen
Product storage quantity	100 kinds
Rejection device	Double push rod eliminates the stainless steel tray on the opposite side of the push rod
Push rod direction	Exclude to the opposite of the operation interface
Voltage requirements	AC230V 50HZ ,1.5KW ,Use Tolerance/Air pressure 1L/min ;60L/H ;6-8kg/cm²
Protection level	IP54
Body material	Stainless steel (SUS304) Windshield is required
Empty test	fe1.0mm nofe1.5mm sus2.0mm
Distance from conveyor belt to ground	750+100mm
Conveying direction	Facing the operation surface, the material is from left to right
Warning light	Two-color warning light
Operating language	Chinese English
special requirements	The gold inspection part needs to add movable ribs, and the ribs are increased

Recommend Products

Company Profile

Company Introduce

♦ Established in 2008.

♦ Shanghai High-tech Enterprise, CE, ISO9001, TUV.
♦ Located in Shanghai, 1 hour to Hongqiao airport.
♦ 13 years experience factory, Our founder has over 20 years experience in pack machine field that we can apply you best project for your require.

♦ 6-8 International machinery exhibitions each year.
♦ Supply OEM/ODM manufacturing.
♦ More than 10000 Square factory, Over 20 engineers striving for Dingjiang, guarantee quality/service.
♦ As both manufacture and trader, we have great quality and price control over products.
♦ Our product have been exported to 40 countries like United States, Canada, Mexico; Australia, New Zealand; Saudi Arabia, Italy, Spain; France, Poland, Israel, Russia, South Korea; Thailand, Indonesia, Malaysia, Philippines etc.
♦ Philosophy of No quality, No future.

Customers&Exhibitions

Certifications

FAQ

1. Can your machine meet our needs well?
A: Just send us your product video and pack weight, then we can choose suitable machine for you.

2. Are you factory or trading company?
A: We are 13 years factory focus on powder grain pack machine.

3. How can we make sure about the machine quality after we start the order?
A: Before delivery, we do FAT and send you the pictures and videos for you to check the quality, Also we prepare you manual, video, all details photos.

4. What is your terms of packing?
A:Pack in wooden cartons.

5. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. For big order, we accept L/C at sight.

6. How about your delivery time?
A: 15 to 45 days after receiving your advance payment. Details depend on your pack machine.

Contact us for more information and details
