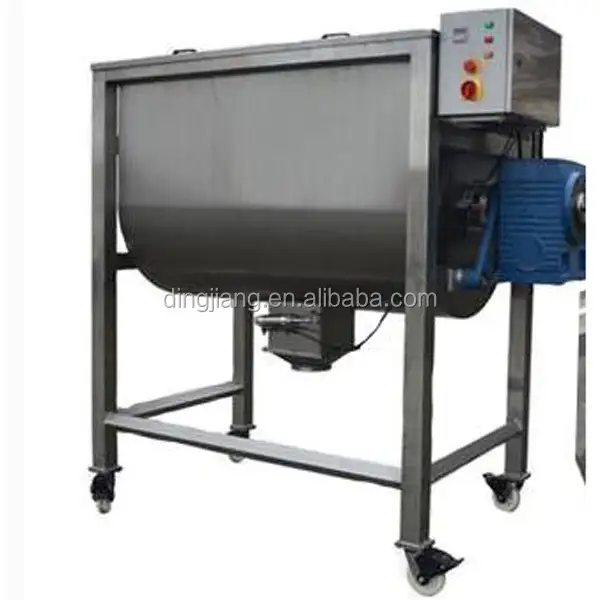

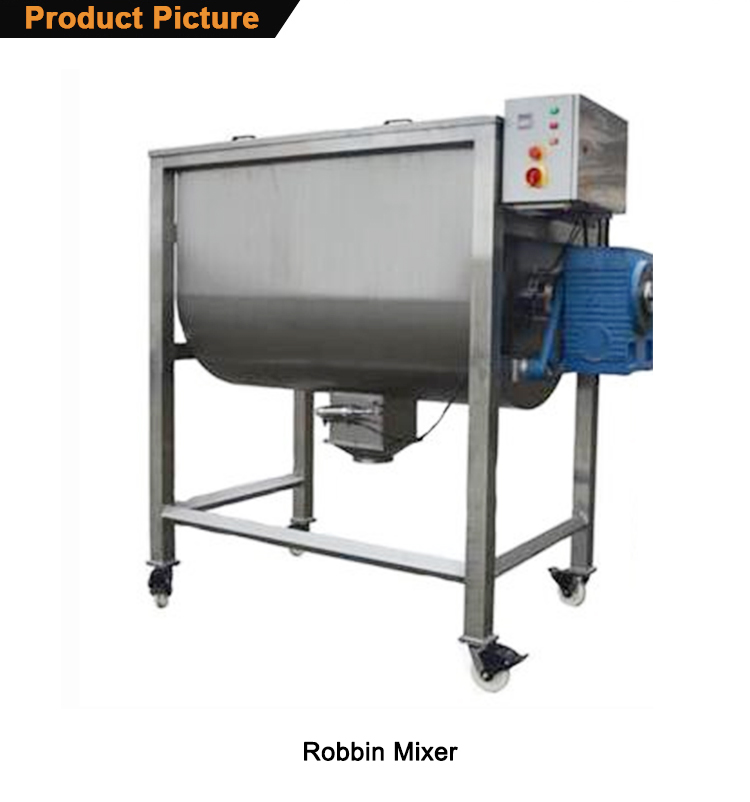

Dingjiang - Stainless Steel 500L 1000L Milk Powder Ribbon Blender Mixing Machine Mixing machine
Stainless Steel 500L 1000L Milk Powder Ribbon Blender Mixing Machine has been widely acclaimed for its competitive characteristics because we have been subject to meeting the industry standard.The fields of application include Mixing machine.
Thanks to the efforts of Shanghai Dingjiang Packaging Machinery Manufacturing Co., Ltd.'s employees, our development work has been carried out smoothly and efficiently. Our Stainless Steel 500L 1000L Milk Powder Ribbon Blender Mixing Machine is developed to lead the industry trend with its new features and unique appearance. Mixing Equipment has won high attention and praise from the industry and market. In the future, Shanghai Dingjiang Packaging Machinery Manufacturing Co., Ltd. will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.
| Mixer Type: | Ribbon | Barrel Volume (L): | 1000 L |
| Material Processed: | Chemicals, Food, Medicine | Max. Loading Volume (L): | 600 L |
| Max. Loading Capacity: | 200L/300L/500L/1000L/1500L | Weight (KG): | 1000 KG |
| Material: | SUS304, Stainless Steel 304 | Condition: | New |
| Product Type: | food powder/pharmaceutical powder | Application: | Powder, Food Processing |
| Additional Capabilities: | Spraying system | Place of Origin: | Shanghai, China |
| Brand Name: | Dingjiang | Voltage: | 110V~480V |
| Dimension(L*W*H): | 1800mm*1100mm*1850mm | Power (kW): | 8.5 kW |
| Warranty: | 12 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, South Africa, Japan, Malaysia, Australia |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Motor, PLC, Engine | After-sales Service Provided: | Engineers available to service machinery overseas |
| Product name: | 2020 China supplier small powder robbin Mixer machine good price | Turning Speed: | 46rpm |
| Max loading rate: | 70% | Mixing time: | 10-15 minutes per batch |
| Function: | mixing | Power(W): | 3KW/4KW/5.5KW/7.5KW/11KW |
Working principle:
The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention
The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
♦.Produces maintenance-free vertical motors: positive &negative is adjustable.
♦.Positive and negative double screw, material is not easy to bridge, adaptable to materials.
♦.Stainless steel plate cover, stainless steel square tube frame structure is more compact, easy to clean up the material.
♦.Unique dustproof design, bearing from dust pollution.
Technological parameters:
Technical parameters | ||||
Machine model | DJ - 0.25 | DJ - 0.5 | DJ - 1 | DJ - 2 |
The whole volume | 0.3 m | 0.6 m | 1.2 m | 2.2 m |
Loading coefficient | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Machine size | 625x870x870mm | 2050 x880x2500mm | 2200 x880x2500mm | 3000 x1100x1600mm |
The engine power | 3.7 kw | 5.5 kw | 5.5 kw | 11 kw |
Equipment weight | 400 kg | 600 kg | 700 kg | 700 kg |
♦ Established in 2008.
♦ Located in Shanghai.
♦ 14 years experience factory Our founder has over 20 years experience in powder filling machine field, so we met a lot different situation that we can apply you best project .
♦ Supply OEM/ODM manufacturing.
♦ Over 20 engineers striving for Dingjiang,guarantee quality/service.
♦ As both manufacture and trader, we have great quality and price control over products.
♦ Our product have been exported to many countries like NZ, Israel, Mexico, Germany, southeast Asia.
♦ Philosophy of No quality, No future.
Dingjiang Pack Main Product:
♦ Auger filler; ♦ Powder filling machine; ♦ 25kg powder pack machine, ♦1kg powder pack machine ,
♦ Granule packing machine ; ♦ Vertical Form Fill Seal Packaging Machines
♦ Inclined, Horizontal Screw Feeders & Conveyors ;♦ Mixing Machines
Shanghai DingJiang Packaging Machinery Manufacturing Co.,Ltd
Xingdingjiang Packaging machinery Manufacturing Co., Ltd.
Add: 2Nd floor,Room 777,Luyangjinmaolu,Zhoushi Town,Kunshan.
Website :www.dj-pack.com www.shdingjiang.com.cn
Mob/what's app /wechat/skype:+86 13764550916
1. Can your machine meet our needs well?
A: Just send us your product video and pack weight, then we can choose suitable machine for you.
2. Are you factory or trading company?
A: We are 14 years factory focus on powder grain pack machine.
3. How can we make sure about the machine quality after we start the order?
A: Before delivery, we do FAT and send you the pictures and videos for you to check the quality, Also we prepare you manual, video, all details photos.
4. What is your terms of packing?
A: Pack in wooden cartons.
5. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. For big order, we accept L/C at sight.
6. How about your delivery time?
A: 15 to 45 days after receiving your advance payment. Details depend on your pack machine.
