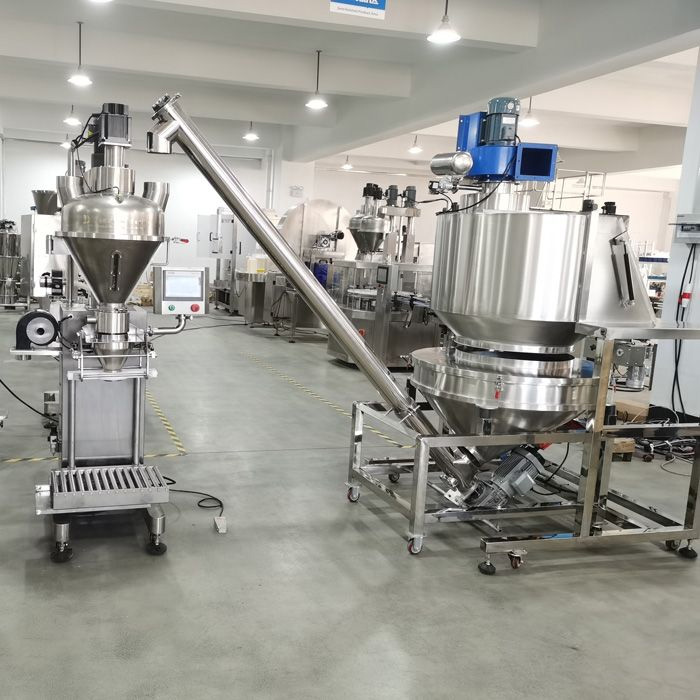

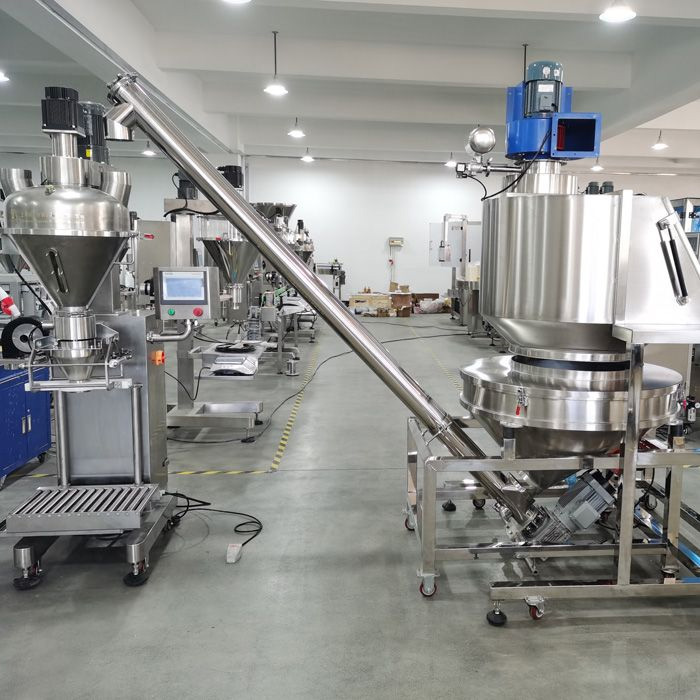

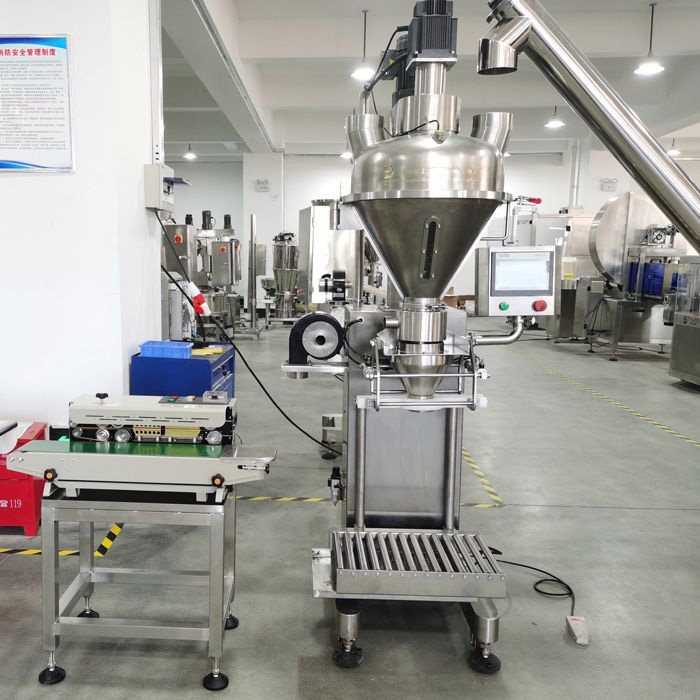

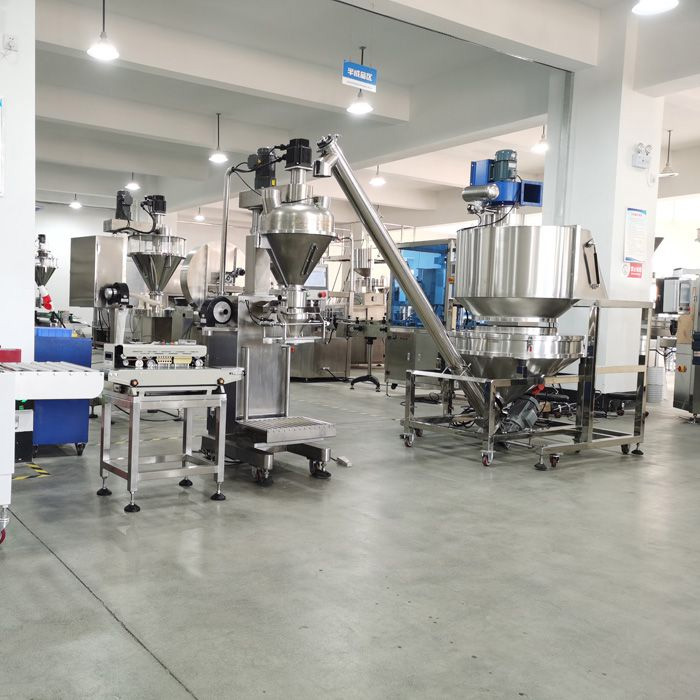

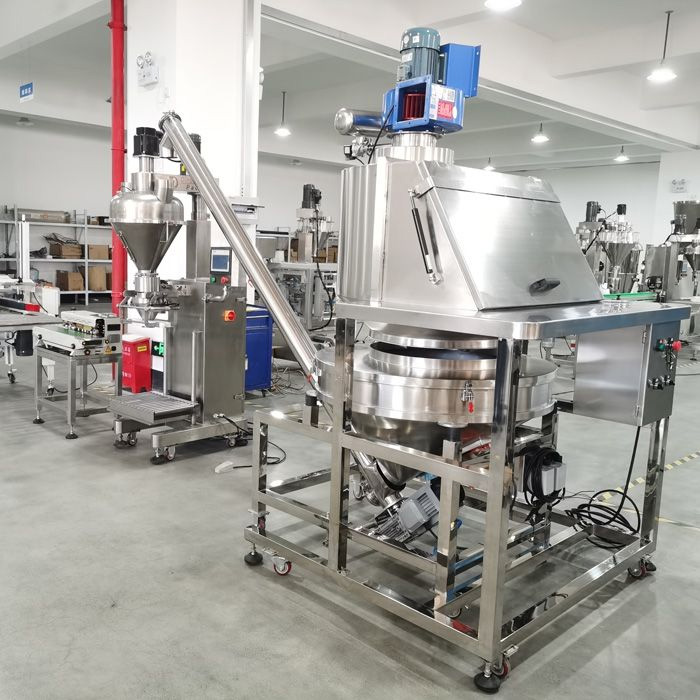

This machine is semi automatic powder filling machine :suitable for 2-10kg ;different type powder like spices ,coffee powder , flour,milk powder ,protein powder ;filling in bags ,speed 3-6 bags per min .
Machine feature:
1. 50L All SUS 304 side opening Hopper ,easy to clean
2. Packaging powdery in 0.5-10kg bag .
3. Servo motor drive the auger which was Lathe processing ,got high accuracy ,can change for different pack weight .
4. Have one stir on the hopper ,assure the powder fill in the auger fully .
5. Chinese/English or custom your language in the touch screen.
6. Reasonable mechanical structure, easy to change size parts and clean up.
7. Through changing accessories, the machine is suitable for various powder products.
8. We use famous brand electric ,more steady .
9. We match one vacuum cleaner ,collect dust and easy to clean the machine .
10. All machine use SUS 304 material except motor and electric parts .
Machine parameters:
Package Weight | 100-5000g changeable( by changing auger attachment) |
Package Accuracy | ±0.2-1%(according to the material ) |
Packaging Speed | 10-25bags/min |
Power Supply | 380V 50Hz/60Hz |
Hopper Volume | 50L(60L for oversized hopper) |
Total Power | 1.4Kw |
Overall Dimensions | 1200×800×2150mm |
Operational Style | PLC control system ,5.7 inch colorful touch screen |
