DJ-530Y automatic liquid bag packing machine customer site

2022-12-29

It is suitable for automatic packaging of liquid of foods, medicine and chemicals, such as pesticide, shampoo, body foam bath lotion, facial cream, ingredient oil, fruit sauce, tomato ketchup and honey etc.

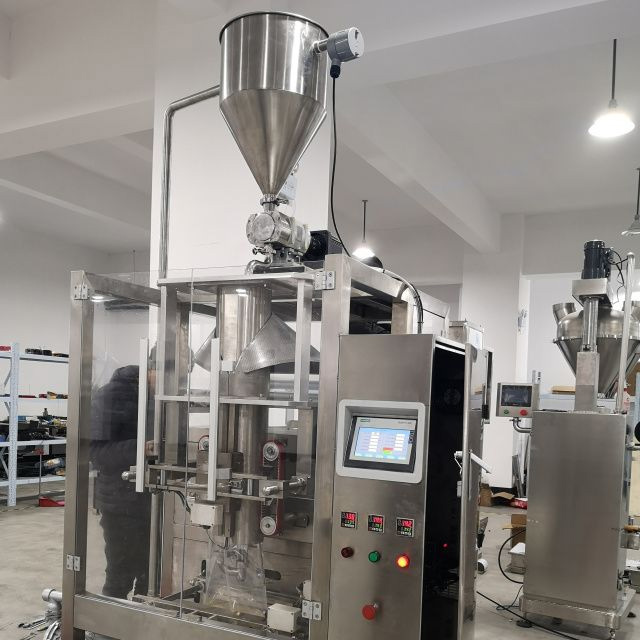

530Y (1)

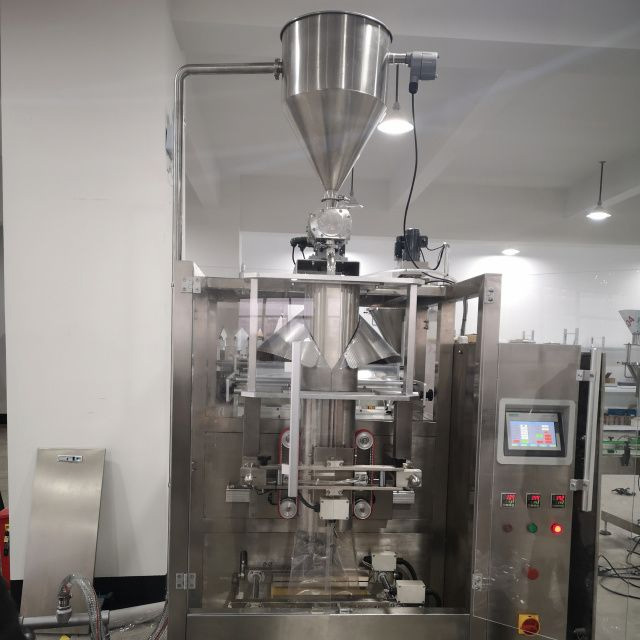

530Y (2)

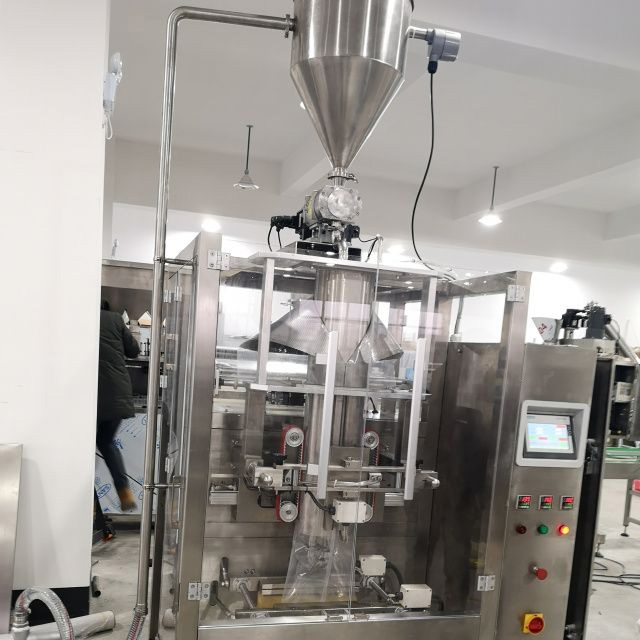

530Y (3)

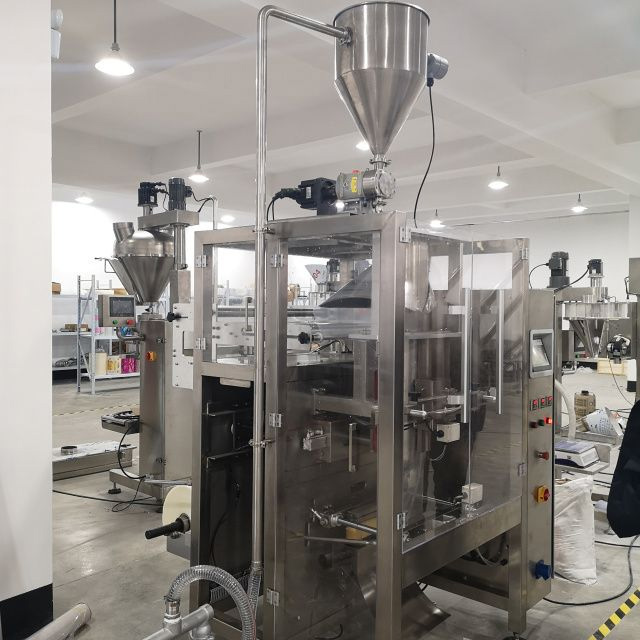

530Y (4)

feature machine:

1.Different metering pump for different kinds of liquid. High accuracy and easy operation.

2.CPU intelligent single chip computer system for efficient running.

3.Step motor for film drag structure, smooth film running and accurate bag cutting.

4.7inch touch screen, easy operation and multiple language for choice.

5.Separate PID temperature controller, suitable for various packing materials.

6.Articulated bag former structure, enable stable bag forming for perfect bag shape.

7.Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

8.Machine automatically finish the process of filling, metering, bag forming, sealing and packing.

9.Machine is simple operation, holding small space and easy moving.

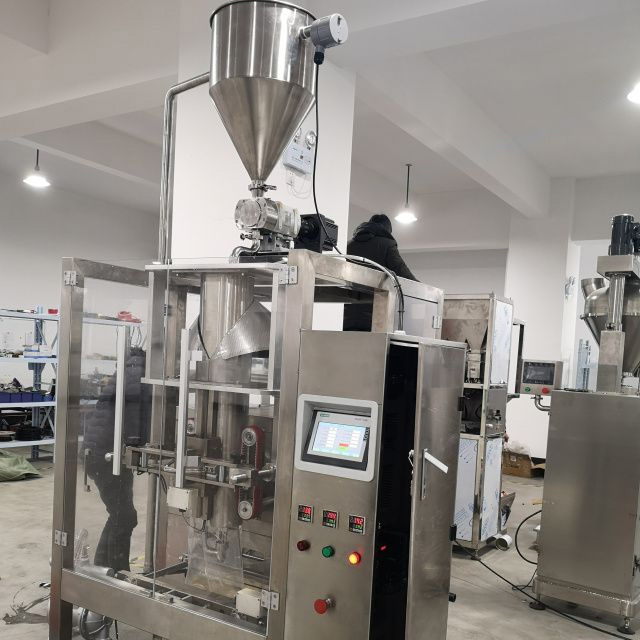

530Y (5)

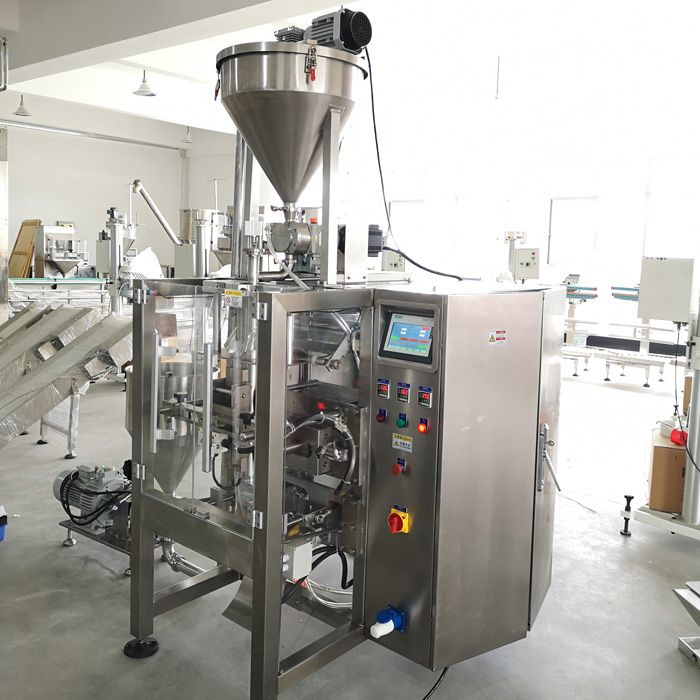

530Y-3

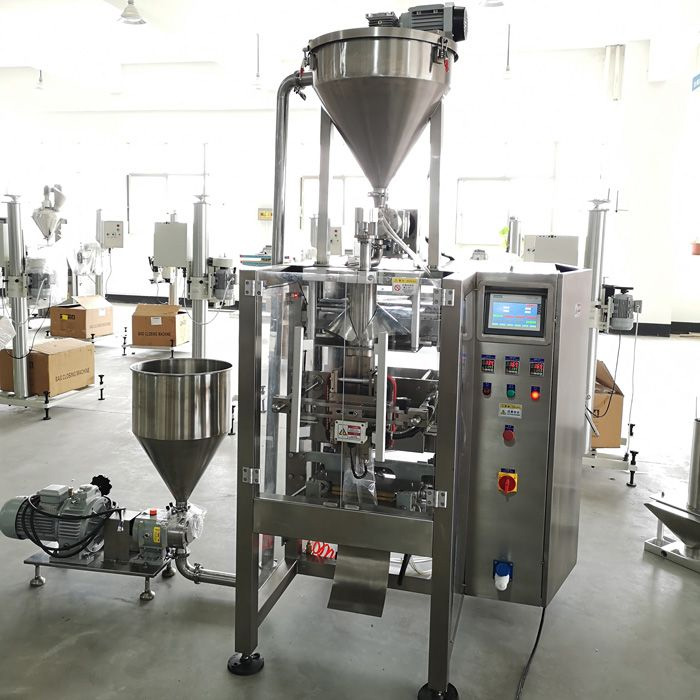

530Y-2

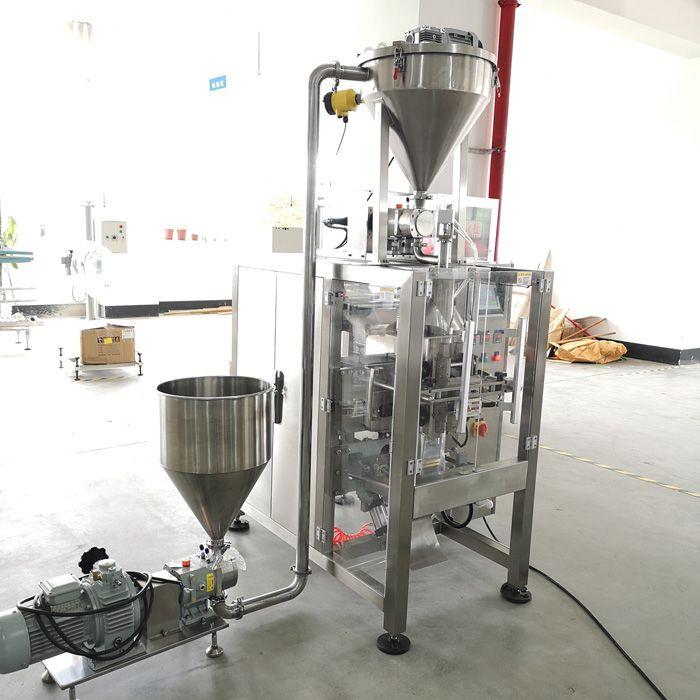

530Y-1

parameters machine:

Item	Automatic Liquid Dairy Milk Pouch Bag Packaging Machine
Model	DJ-530Y
Filling Method	Using pump to fill
Bag style	Back sealed bag
Bag size	L80-300mm, W50-200mm
Packing speed	15-60 bags/min
Control system	PLC+ screen
material	stainless steel
voltage	AC 220V
Weight	G.W. 650kg
Dimension	L1330W1140H1800 (mm)
Power	3.5KW
